900 NORTH STAR KIT

JIMNY JB74 EXP Roof Rack



Designed to Reduce Height

Designed with a flat base to reduce its height and maximise your loading surface.
Product Size: W 1250mm/ L 1400mm/ H 38.8mm (excluding the height of the roof rack leg)
Roof rack leg kit (sold separately) is required for installation.

Built for Ease of Use

Eye nuts or bolts (M8) can be inserted into and secured to the T-slot channels (2 slots at the top of the floor bars and 1 slot each at the top and bottom of the side frames) to allow mounting of optional accessories for loads or installation of auxiliary lamps.

Made of Rustproof aluminum


Tested According to JDM Auto Parts' Standards

Various tests are carried out in accordance with the standards of Japanese automotive parts.

Optional Accessories

Optional accessories will also be released soon, allowing you to expand range of applications to suit your needs.

Installation Manual

Installation Manual: EXR-01
Installation Manual: EXR-01L

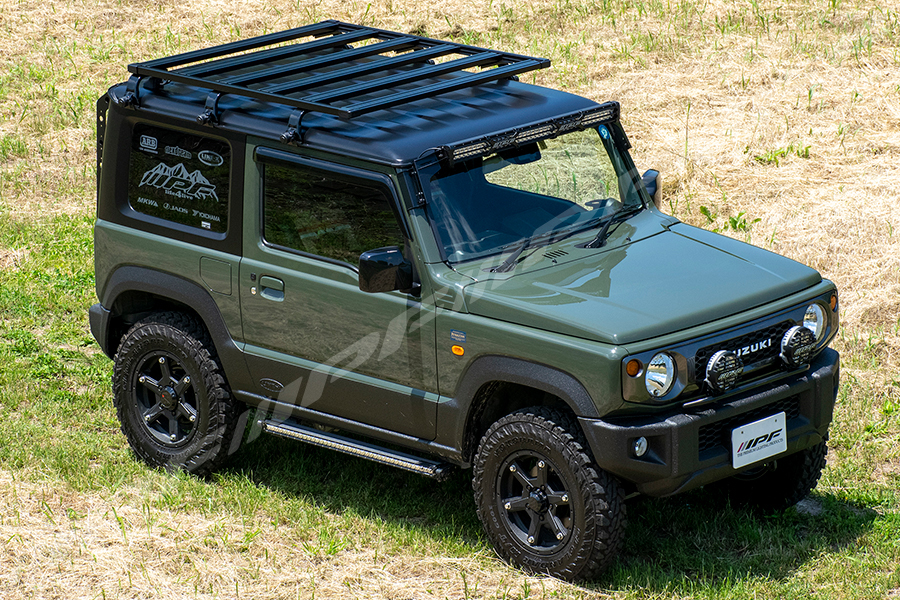

Mounting Image

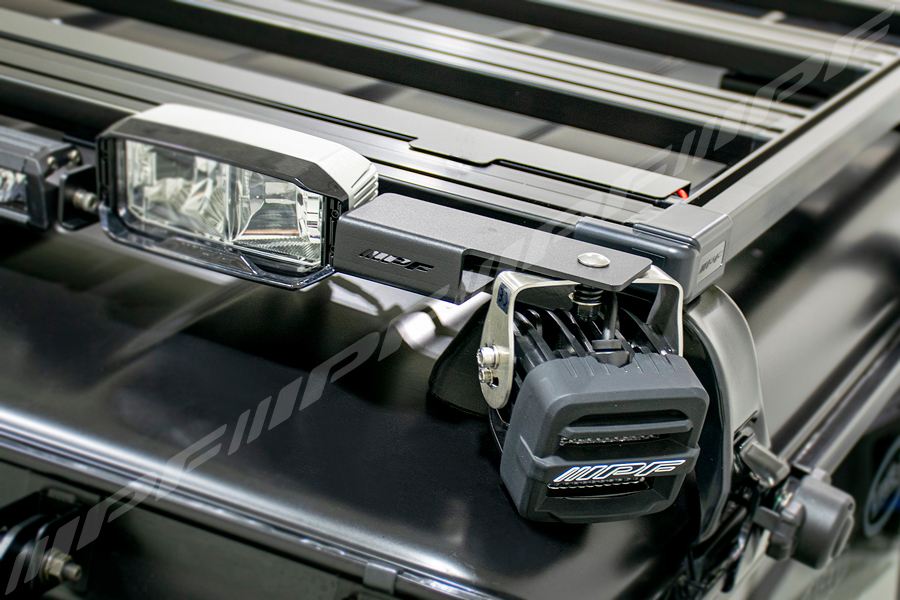

Optional Accessory Installed Image

Optional Accessory Installed Image

Optional Accessory Installed Image

Optional Accessory Installed Image

LINE UP


Part Number Description Vehicle Type Weight Price
EXR-01 Roof Rack Main Unit JIMNY JB74 etc.* 12.5kg OPEN



Part Number Description Vehicle Type Weight Price
EXR-01L Roof Rack Leg Kit JIMNY JB74 etc.* 4.7kg OPEN

Optional Accessories





Part Number Description Attachable Part Numbers Weight Price

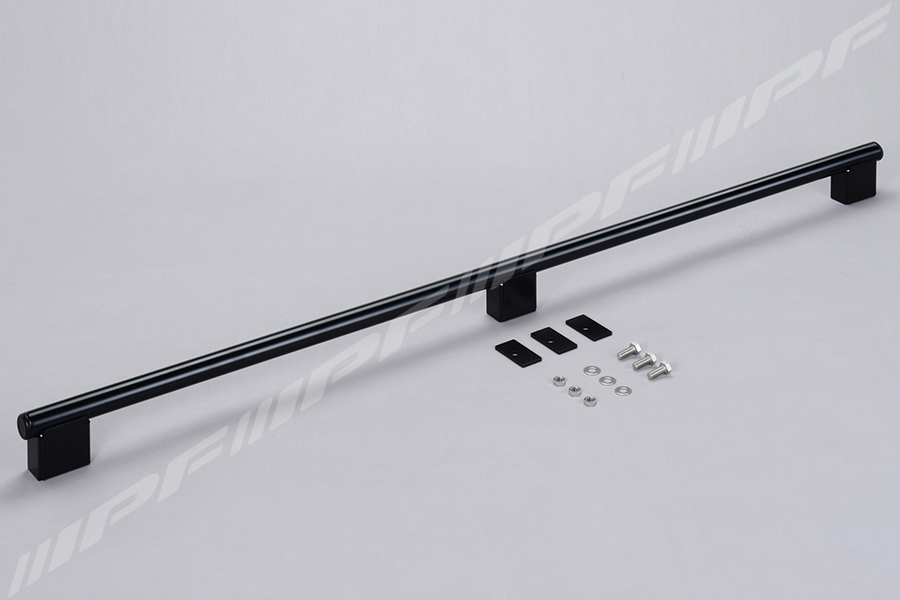

EXR-01P Roof Rack Rail Kit EXR-01 1.85kg OPEN
Product Size: W 30mm/ H 65mm/ D 1120mm





Part Number Description Attachable Part Numbers Weight Price
EXR-02P Wind Noise Reduction Plate Kit EXR-01 0.16kg OPEN



Part Number Description Attachable Part Numbers Weight Price
EXR-03P IPF 600S Light Bar Stay 612SD/622SD/642SD
611SS/621SS/631SS
0.48kg OPEN





Part Number Description Attachable Part Numbers Weight Price
EXR-04P IPF Lamp Multiuse Stay S-632/642BL/968/816XL 0.27kg OPEN




Part Number Description Attachable Part Numbers Weight Price
EXR-05P IPF 642WL Stay (RH)
(Driver's Side)
642WL-1/642WL-2 0.69kg OPEN




Part Number Description Attachable Part Numbers Weight Price
EXR-06P IPF 642WL Stay (RH)
(Passenger's Side)
642WL-1/642WL-2 0.69kg OPEN




Part Number Description Attachable Part Numbers Weight Price
EXR-07P Additional Floor Bar EXR-01 1.88kg OPEN





Part Number Description Attachable Products Weight Price
EXR-08P Awning Stay ARB/Rhino-Rack Awning 1.8kg OPEN





Part Number Description Attachable Products Weight Price
EXR-09P Roof Rack RotopaX Stay RotopaX Packs 0.95kg OPEN





Part Number Description Attachable Part Numbers Weight Price
EXR-10P Optional Eye Nut Set EXR-01/EXJ-02 0.3kg OPEN

*Vehicles on which these product can be fitted include:
SUZUKI JIMNY JB74 2018-
TOYOTA LAND CRUISER 70 (GRJ76.KGRJ79K)
TOYOTA LAND CRUISER 80 (FJ.HDJ.HZJ8#)
TOYOTA LAND CRUISER PRADO (KDJ.KZJ.RZJ.VZJ9#) W/O ROOF RAIL
///Term description///
Lumen It is the unit of the optical energy generated from an electric bulb.
When numerical value is large, the brightness of the bulb become brighter.
Candela Measure the brightest point numerically when a head lamp is equipment.
kelvin Kelvin temperature is a numerical measurement that describes the color appearance of the light produced by the lamp and the color appearance of the lamp itself,
expressed on the Kelvin (K) scale.

Light source

Halogen Halogen light bulbs are a special type of incandescent light bulb.
They are filled with halogen gas, have a tungsten filament, and are enclosed in quartz glass.
It is intend to be out of date, but still bright and gentle light in the eyes.
H.I.D High Intensity Discharge, it the new replacement technology for halogen headlights.
Brightness is the biggest advantage of an HID conversion. Not only will you be able to see farther and better at night, but other drivers will be able to see as well.
Its estimated that an HID conversion kit will increase your brightness from a halogen set up as much as 300%.
LED LED lighting is a lamp or other light that uses light-emitting diodes (LEDs) as a source of illumination.
LEDs are more expensive than traditional bulbs. They are heat sensitive, so if they are not used with a steady and consistent current, they can stop working or fade quicker.
These lights are also usually best used in directional lighting rather than room lighting, although some changes in design may improve this.
