///IPF 351HLB LED HEAD LAMP CONVERSION KIT

Developmental Background

IPF started by developing LED chips, pursuing the ideal of performance LED bulbs.
Developed an optimum LED chip for headlamp bulbs together with an LED chip manufacturer.
IPF can deliver the most advanced LED technology capitalizing on cooperative development's strength.
These new bulbs offer excellent light distribution and brightness.

FEATURES

• IPF creates a fully new automotive LED chip for headlamp bulbs
• Offering a proper beam pattern and bright illumination
• Developed the next generation LEDs in conjunction with an LED chip manufacturer
• Replicates halogen filament truly
• Optimized configuration and size of light-emitting face can deliver evenly produced beam pattern and improved brightness
• Improved road visibility for distance and width without loss of LED light
• Ensures improved visibility in adverse weather
• New X2 series bulbs deliver all time high lighting performance

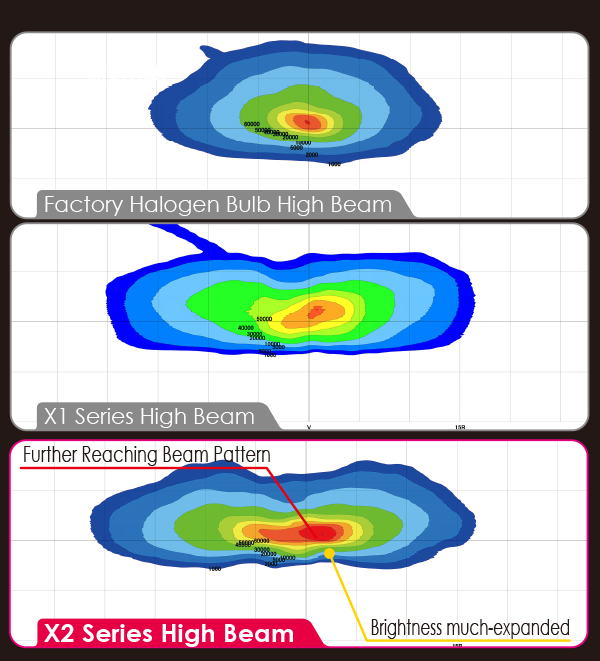

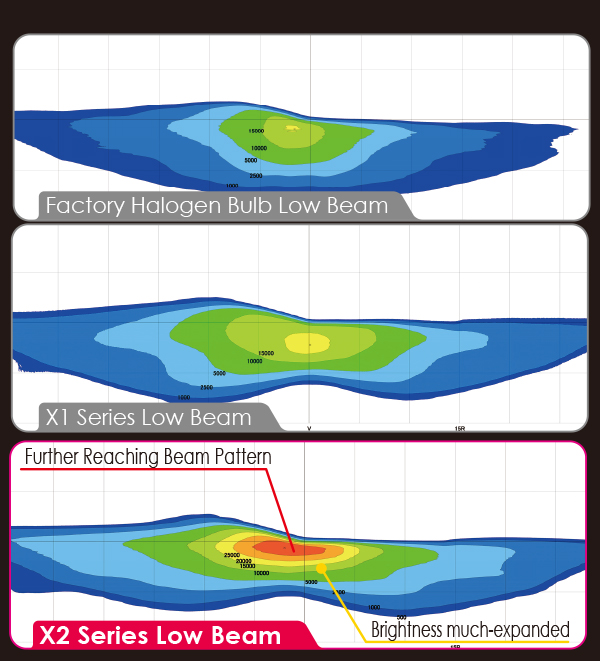

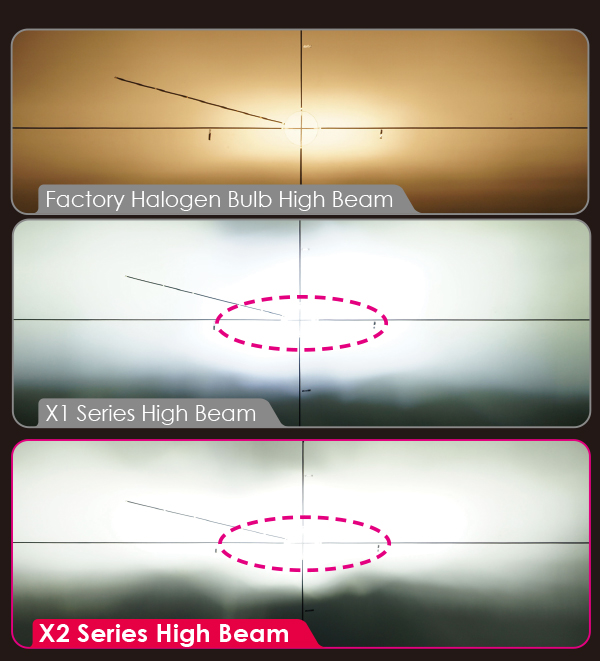

Improved Road Visibility

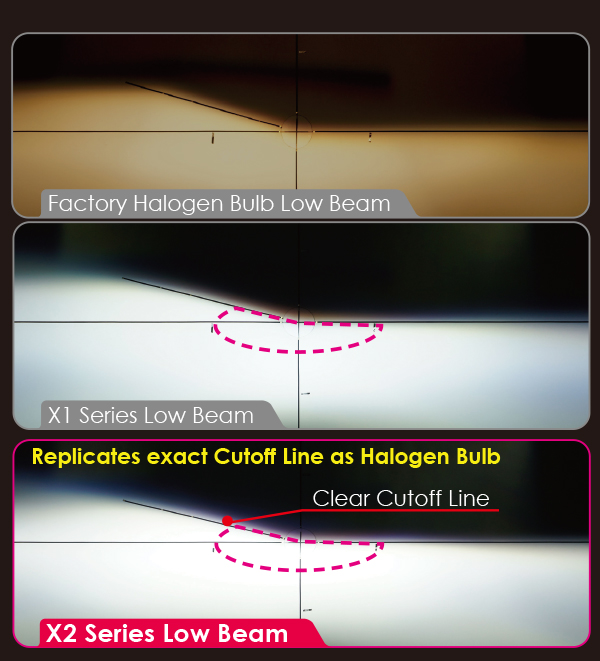

Replicates halogen bulb filament, providing 6500k true white daylight color. Improved road visibility ensures safety night-time driving.

Factory Halogen Bulb

X2 Series Bulb

All-new Three Technologies

IPF brought the all-new three technologies into the X2 series bulbs. Enhanced heat release design to offer the best and brightest lighting performance.
The thinner LED bulb body, the better light pattern can be made. The thicker LED bulb body, the better heat release efficiency can be achieved.
IPF's performance LED bulbs can balance excellent light distribution characteristics with outstanding brightness.
5000lm in total flux (conventional ratio138% UP) is a sizable improvement in lighting performance.

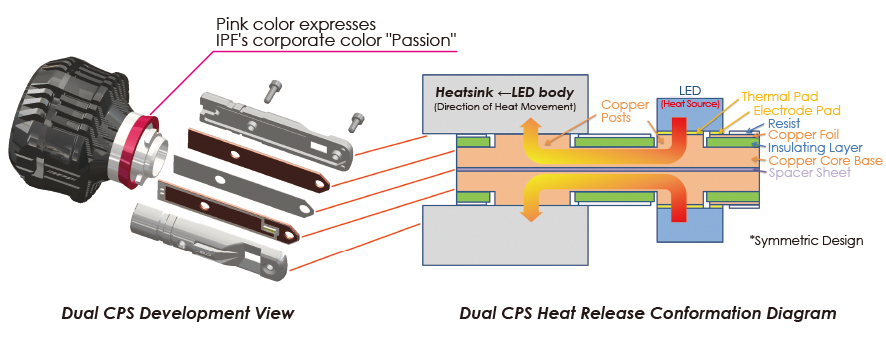

Technology 1 "Dual CPS - Dual Copper Post Structure-" (Patented Design)
• IPF's performance LED bulbs feature the most efficient method for heat release
• Adopts our patent technology, "Dual CPS"
• Advanced manufacturing technology "Post Structure" provides high-spec copper substrate
• "Dual CPS" delivers thin structure of LED body and conducts heat given off from LED circuits to the heatsink

Technology 2 "Highly efficient Heat Conduction & Release Design"
• Highly heat-conductive aluminum die-cast alloy LED body
• Proven reliable heatsink using extruded aluminum alloy A6063
• Optimized heatsink shape ensures enhanced heat release efficiency

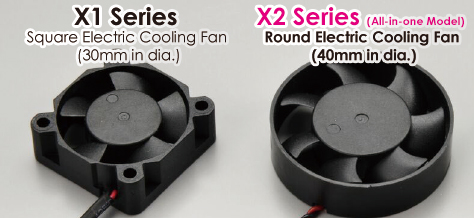

Technology 3 "Top Performance large-sized Electric Cooling Fan"
• Optimized heatsink incorporating large-sized cooling fan
• Increased wind power - conventional ratio 146%
• Large volume of air delivered ensures the LED bulb runs cooler

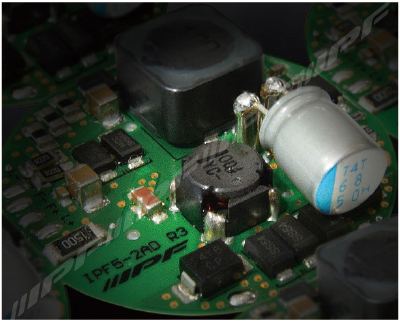

New Circuit Design

Improved noise-reducing technology, "SEPIC" system delivers long-lasting and downsized drive unit.

• "Single Ended Primary Inductor Converter" offers several technology merits
• Miniaturization of electronic circuits
• Improved electromagnetic compatibility (EMC) design
• Highly reliable long-lasting operation
• Employs Japanese-made hybrid condenser, three terminal filter and common mode noise rejection choke coil
• Well-selected high quality components provide protection against electromagnetic interference
• IPF's latest LED bulbs are compatible with hybrid vehicle, EV and PHEV both 12/24v vehicles

Safety Feature/Protection against Noise

Equipped with high-spec EMC design and number of safety systems.

• Optimized board pattern
• Improved EMC design to reduce noise
• Integrated high-performance noise filter
• Highest quality noise reduction performance
• Large number of protection features according to OEM standards
• Electrostatic/pulse protection
• Over/under voltage protection
• Overcurrent protection

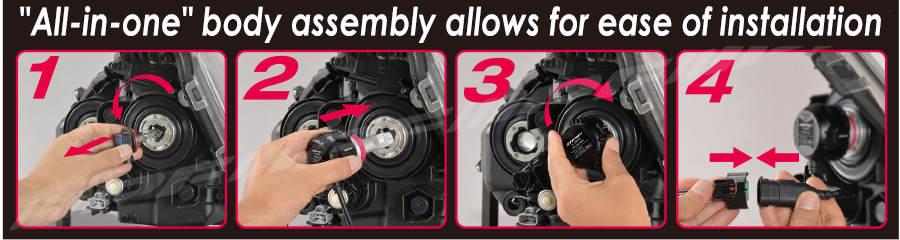

Easy Installation (4 Steps)

"All-in-one" body assembly allows for ease of installation and a built-in electric fan mitigates the buildup of heat.
Continuous airflow protects electric components' damage from heat.

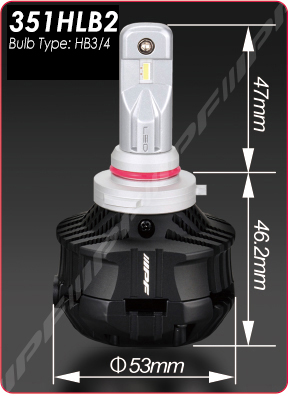

Product Dimensions & Attachment

IPF releases regular bulb types including H11, HB3/4 and a new added HIR2 bulb type which is fitted with TOYOTA CH-R etc.
X2 series bulbs provide an ideal of beam pattern, eliminating scattered and glare light. Designed to perfectly fit with each bulb type's attachment.

Required installation clearance is 25mm from the rear of halogen bulb. Clearance about 100mm needed when removing halogen bulb.
If there is not enough space to allow full range of the LED bulb's movement, then remove your vehicle's headlamp units for installation.

Uncompromised Quality

• Selected highly durable quality parts
• Manufactured in a strict quality control regime
• Meets OEM demand standard test
• Based on IPF's product performance evaluations
• Adds muddy salted water test
• Conducts real car endurance test
• Passed toughest evaluation tests
• Provides improved durability to withstand in conceivable harsh usage environment
• Compatible with Hybrid vehicles and ECO idling or start-stop cut off system
*In general usage environment, IPF's LED conversion kits deliver a sense of safety while using it for a long time as vehicle lighting is the most important security part and it offers a maintenance-free secure feeling.

LINE UP

301HLB2

351HLB2

3R1HLB2

Part Number	Bulb Type	Power Consumption	Color Temperature	Price

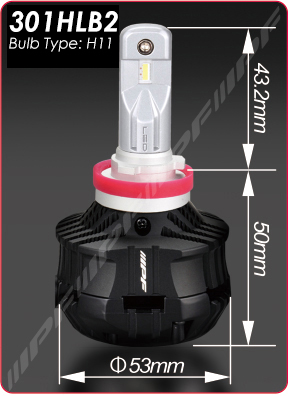

301HLB2	H11	12v/24v 28w	6500k	OPEN
351HLB2	HB3/4	12v/24v 28w	6500k	OPEN

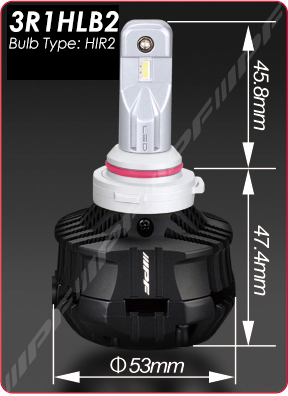

3R1HLB2	HIR2	12v/24v 28w	6500k	OPEN
