900 NORTH STAR KIT

3-Mode Brightness Control System

Varies Brightness in tune with the Situation

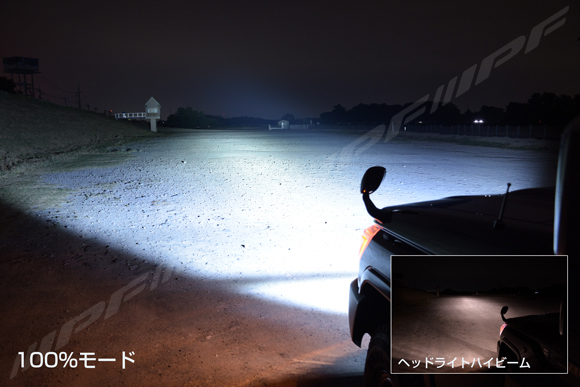

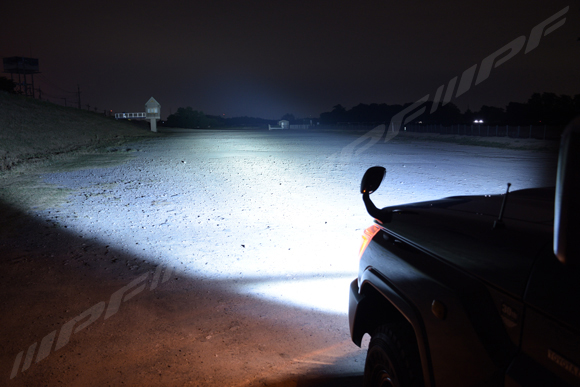

100%点灯
100%点灯
Maximum Mode

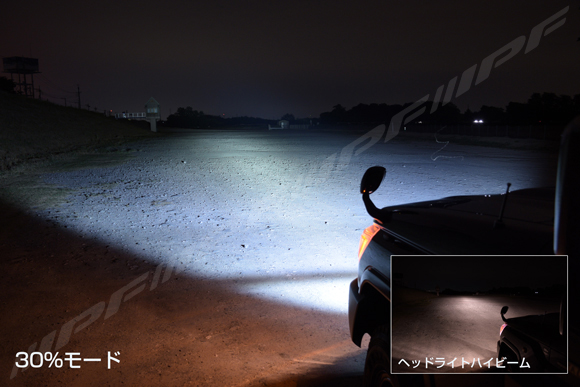

30%点灯
30%点灯
30 % Mode, equivalent to High Beam

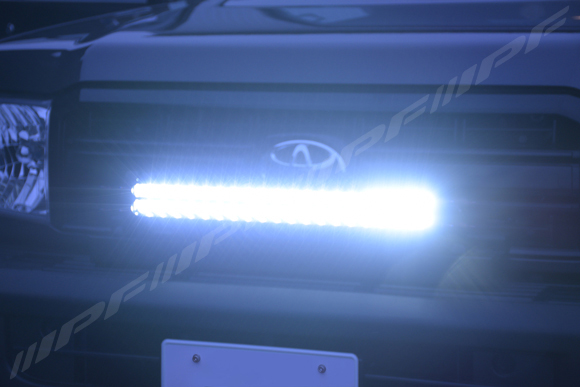

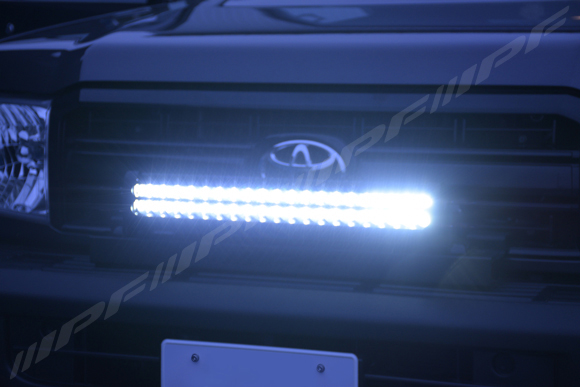

DRLモード
DRLモード
DRL Mode, Illumination Day and Night

Eye-grabbing Brightness/ Total Luminous Flux



• Total Luminous Flux: 11,200Lm/ 20inch Model

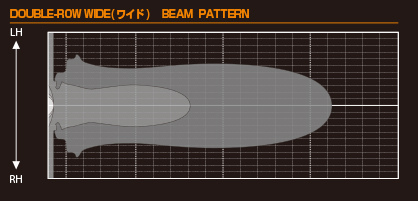

• Designed Front Side Wide Beam Pattern
• Wide Eyesight For Off-Roader
• React farster, catching unexpected Objects

20" / 10” All sizes E-mark approved

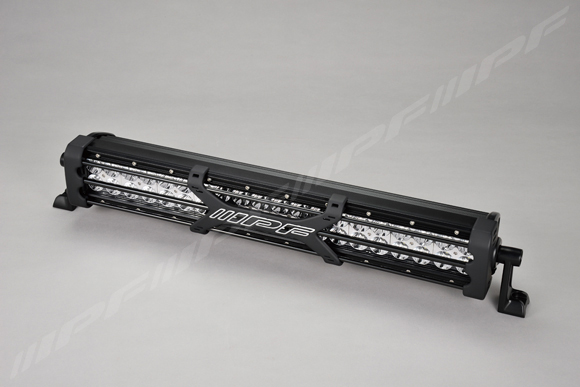

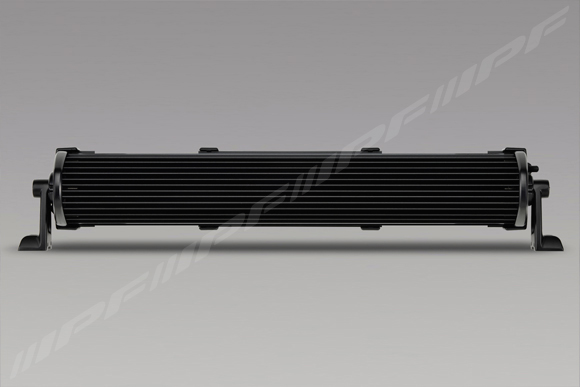

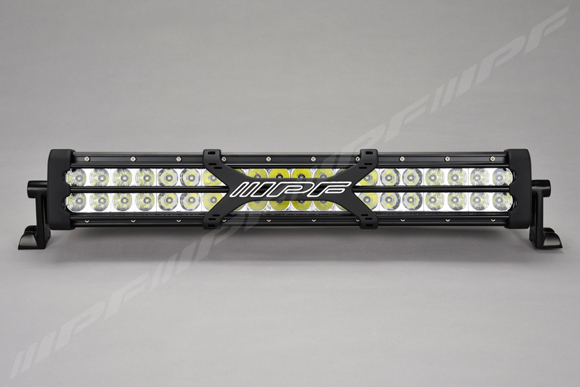

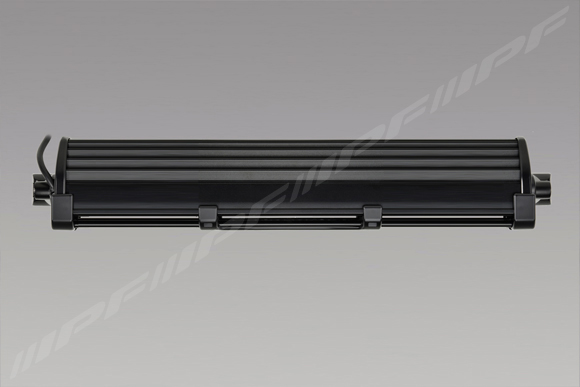

20" Double Row (622RJ)

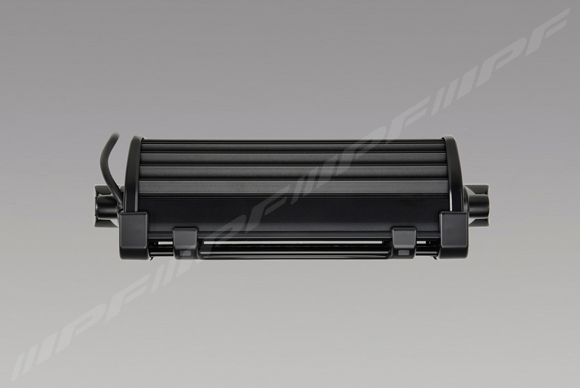

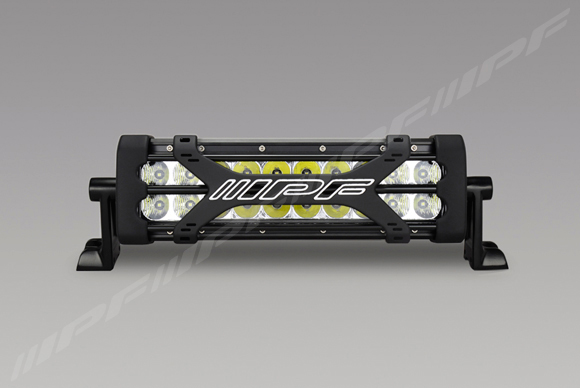

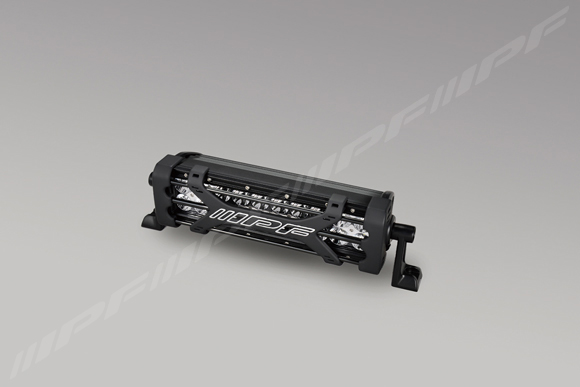

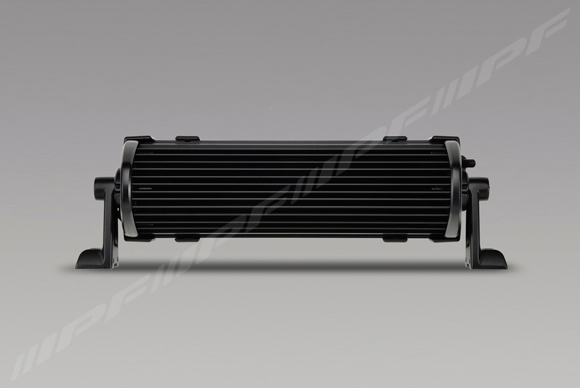

10" Double Row (612RJ)

Extreme Grille Guard

Extreme Grill Guard
• Detachable "Extreme Grille Guard"
• Dressed Up Appearance

One-Year Warranty


Super Tough Body

Extreme Grill Guard
• 10G Vibration Resistance
• Shock Resistance Body

Water and Dustproof Design


• Water and Dustproof: IP68/IP69K
• Keep out water even in harsh conditions
• Waterproof AMPHENOL AT Connector
• Heavy-duty Connector even for Construction Machinery
• Enhanced Harness & Connector against high current

Including Wiring Harness with Relay-Switch

Including Wiring Harness with Relay-Switch
• Broad Operating voltage range of 10-32V

Certification

• CE Marking certified
• ROHS EMC compliant
• E-Mark / ECE Regulation112 certified / in use 12V
Extreme Grill Guard

Harshest Environment

Extreme Grill Guard
Extreme Grill Guard
Withstanding Range
-30°C~+70°C(-22 °F~+158°F)

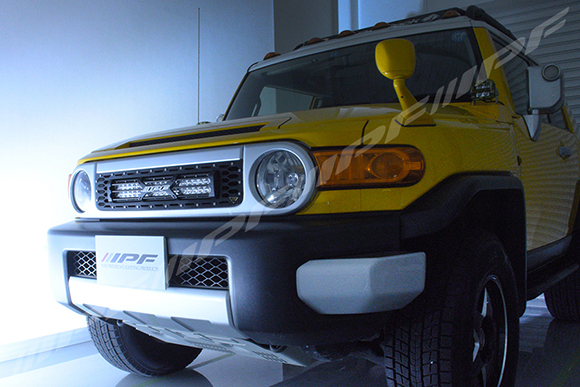

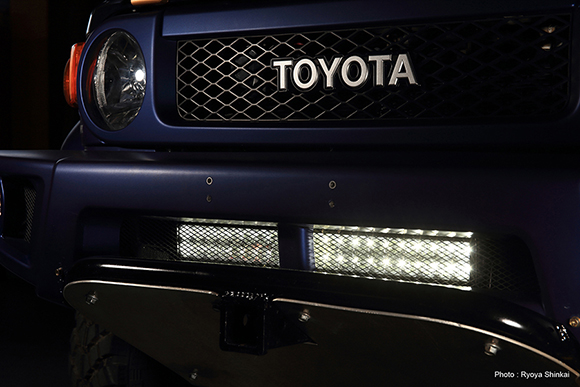

MOUNT IMAGE

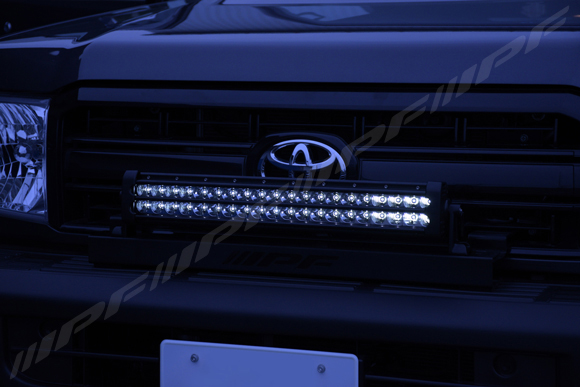

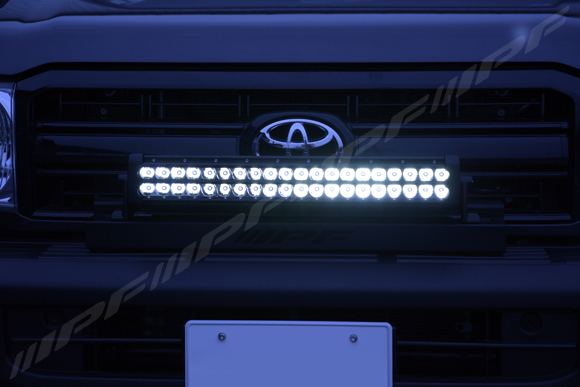

IMAGE: 20" DOUBLE ROW

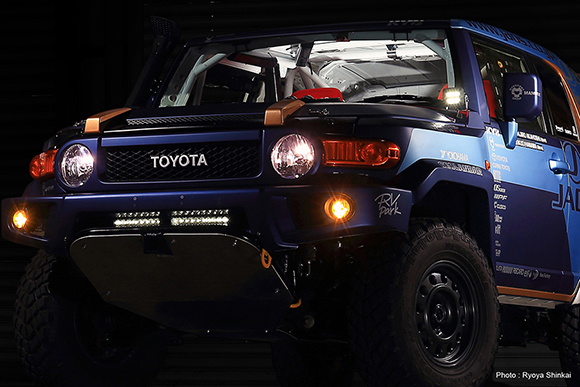

IMAGE: 10" DOUBLE ROW








Product Dimensions & Wiring Diagram






LINE UP

622RJ
20" Double Row (622RJ)
612RJ
10" Double Row (612RJ)
Part#:622RJ  Product Name: 600 Series 20" Double Row R
Lumen Candela Color Temperature Power Consumption Price
11,200lm / 3,600lm / 33lm 192,500cd / 68,700cd / 980cd 6000K 117w OPEN

Part#:612RJ  Product Name: 600 Series 10" Double Row R
Lumen Candela Color Temperature Power Consumption Price
5,600lm / 1,680lm / 16lm 116,700cd / 41,300cd / 600cd 6000K 54w OPEN

Optional Accsesory

622RJ
WA-17
622RJ
WA-18
Part# Specification Price
WA-17 Product Name: 600 Series 12V Relay OPEN
WA-18 Product Name: 600 Series 24V Relay OPEN
///Term description///
Lumen It is the unit of the optical energy generated from an electric bulb.
When numerical value is large, the brightness of the bulb become brighter.
Candela Measure the brightest point numerically when a head lamp is equipment.
kelvin Kelvin temperature is a numerical measurement that describes the color appearance of the light produced by the lamp and the color appearance of the lamp itself,
expressed on the Kelvin (K) scale.

Light source

Halogen Halogen light bulbs are a special type of incandescent light bulb.
They are filled with halogen gas, have a tungsten filament, and are enclosed in quartz glass.
It is intend to be out of date, but still bright and gentle light in the eyes.
H.I.D High Intensity Discharge, it the new replacement technology for halogen headlights.
Brightness is the biggest advantage of an HID conversion. Not only will you be able to see farther and better at night, but other drivers will be able to see as well.
Its estimated that an HID conversion kit will increase your brightness from a halogen set up as much as 300%.
LED LED lighting is a lamp or other light that uses light-emitting diodes (LEDs) as a source of illumination.
LEDs are more expensive than traditional bulbs. They are heat sensitive, so if they are not used with a steady and consistent current, they can stop working or fade quicker.
These lights are also usually best used in directional lighting rather than room lighting, although some changes in design may improve this.
