900 NORTH STAR KIT

3-Mode Brightness Control System

Varies Brightness in tune with the Situation
100%点灯
Maximum Mode
Maximum Mode
30%点灯

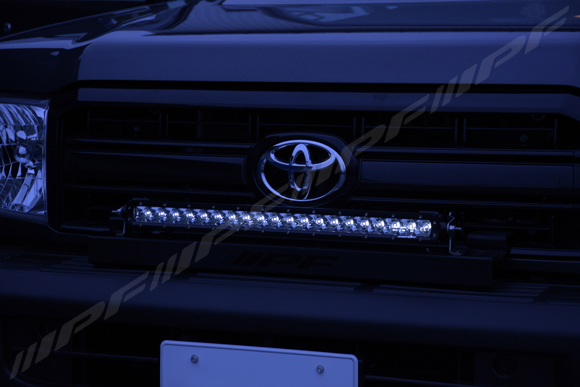

30 % Mode, equivalent to High Beam
30 % Mode, equivalent to High Beam
DRLモード

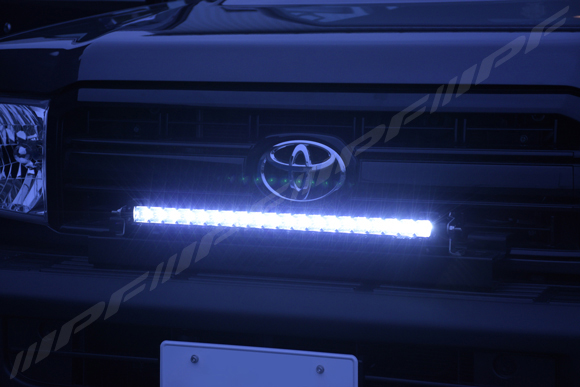

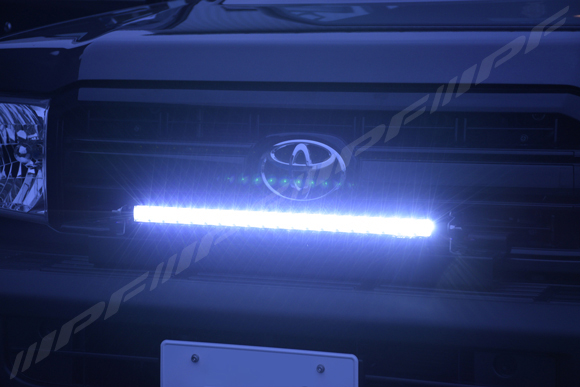

DRL Mode, Illumination Day and Night
DRL Mode, Illumination Day and Night

Superior Brightness, "Just Motor Sports Specs"



• Maximized luminous Intensity 272,500cd/ 20inch Model

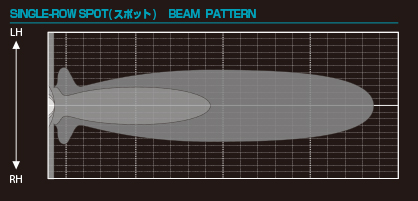

• Wide Beam Pattern
• Motor Sports Specs for High Speed Zone

20" / 10" All sizes E-mark approved

100%点灯

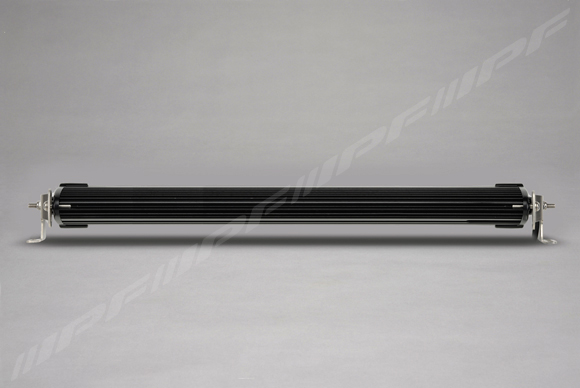

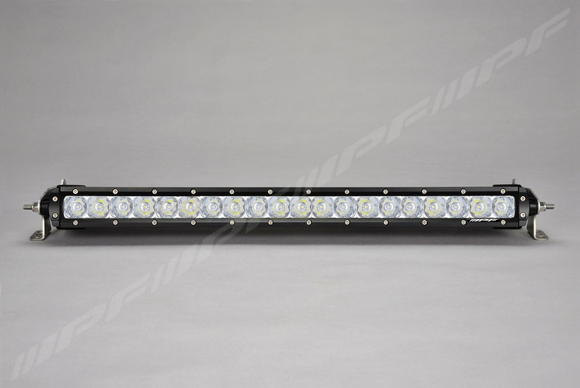

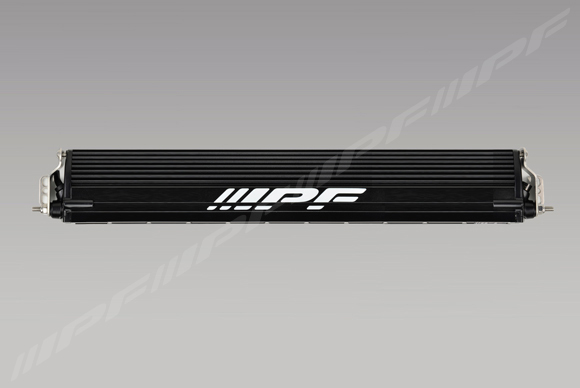

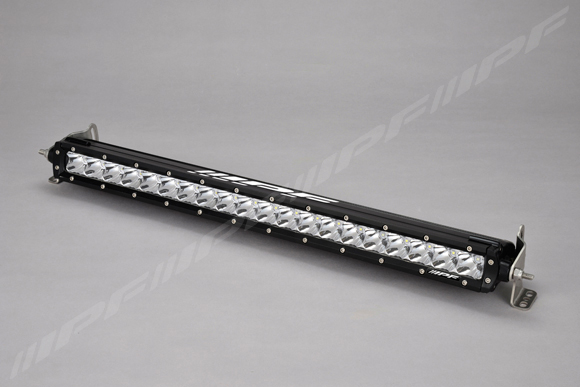

20" Single Row (621FJ)
30%点灯

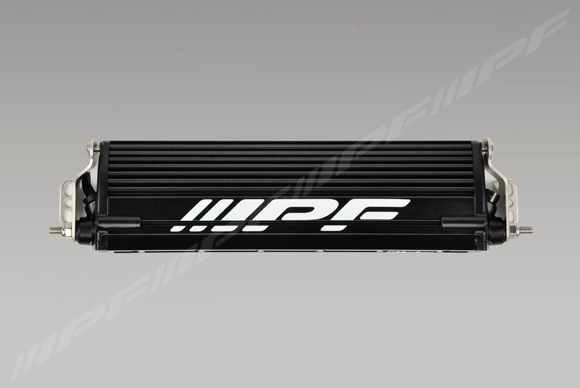

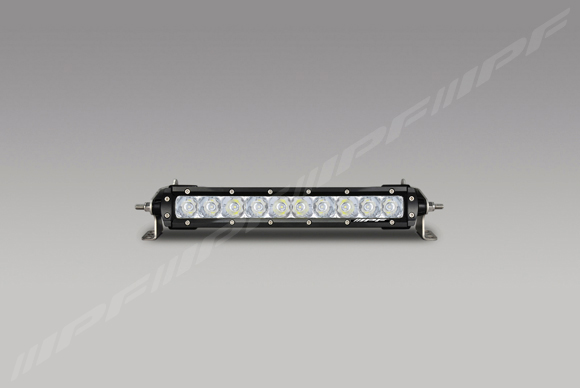

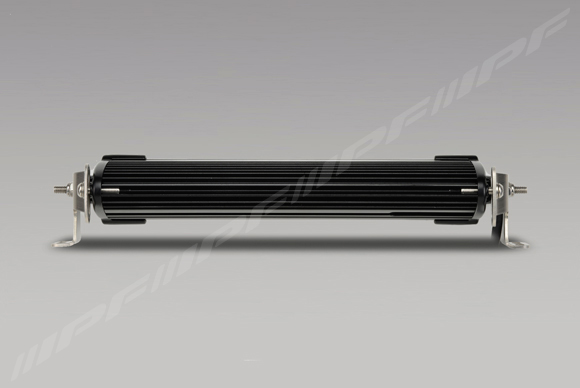

10" Single Row (611FJ)

One-Year Warranty


Super Tough Body

Extreme Grill Guard
• 10G Vibration Resistance
• Shock Resistance Body

Water and Dustproof Design


• Water and Dustproof: IP68/IP69K
• Keep out water even in harsh conditions

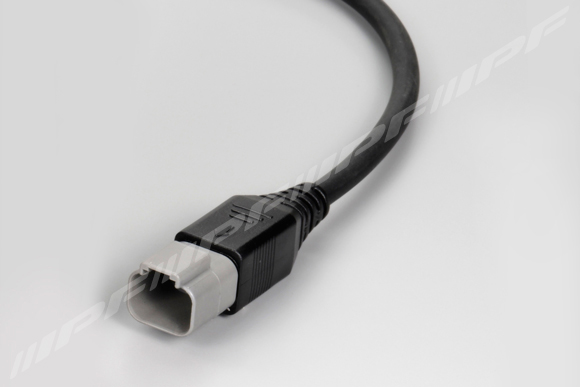

• Waterproof AMPHENOL AT Connector
• Heavy-duty Connector even for Construction Machinery
• Enhanced Harness & Connector against high current

Including Wiring Harness with Relay-Switch

Including Wiring Harness with Relay-Switch
• Broad Operating voltage range of 10-32V

Certification

• CE Marking certified
• ROHS EMC compliant
• E-Mark / ECE Regulation112 certified / in use 12V
Extreme Grill Guard

Harshest Environment

Extreme Grill Guard
Extreme Grill Guard

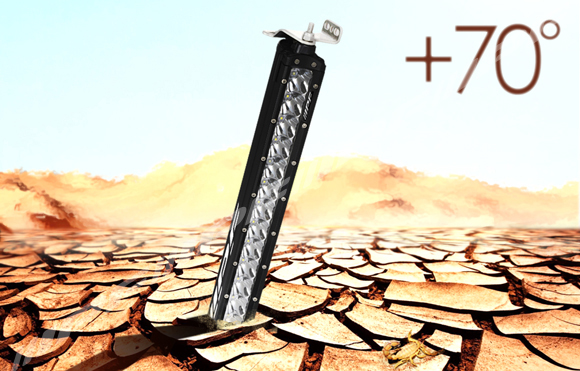

Withstanding Range
-30°C~+70°C(-22°F~+158°F)

MOUNT IMAGE

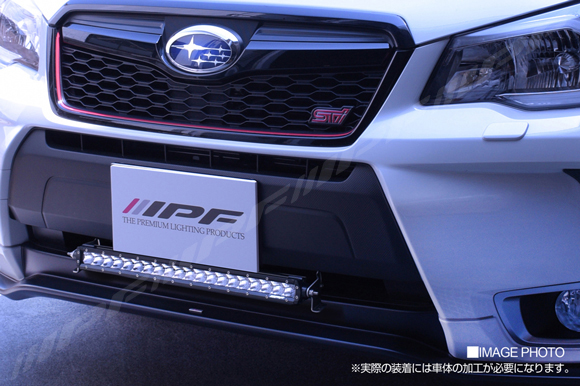

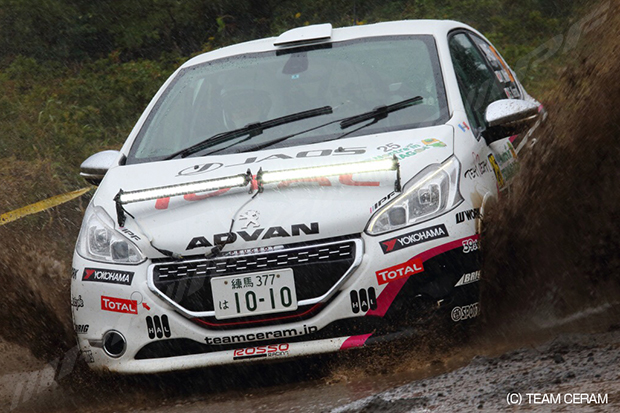

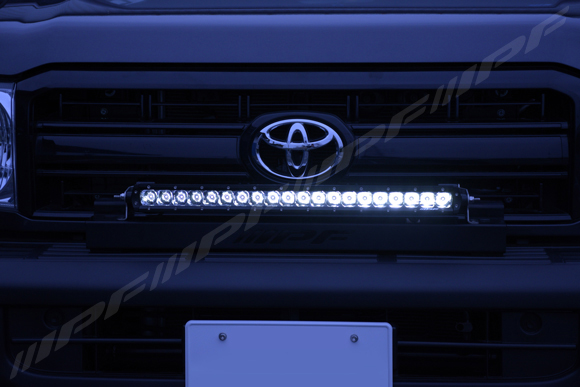

IMAGE: 20" SINGLE ROW

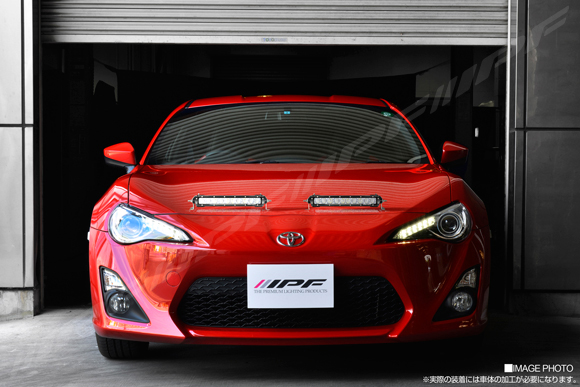

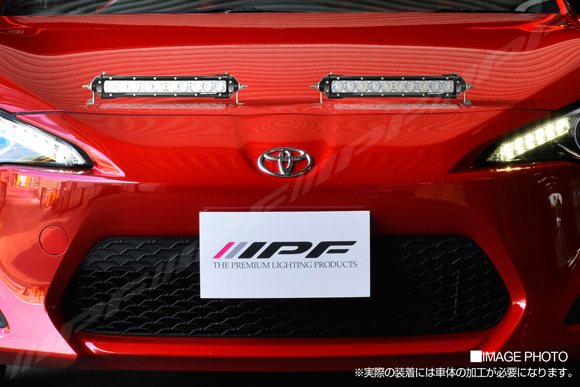

IIMAGE: 10" SINGLE ROW

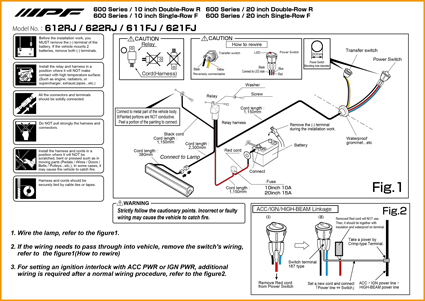

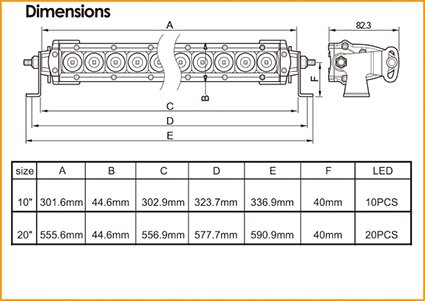

Product Dimensions & Wiring Diagram





LINE UP

622RJ
20" Single Row (621FJ)
612RJ
10" Single Row (611FJ)
Part#:621FJ Product Name: 600 Series 20" Single Row F
Lumen Candela Color Temperature Power Consumption Price
6,440lm/1,930lm/19lm 272,500cd / 98,700cd / 1,160cd 6000K 80w OPEN

Part#:611FJ Product Name: 600 Series 10" Single Row F
Lumen Candela Color Temperature Power Consumption Price
3,220lm/960lm/10lm 180,000cd / 66,000cd / 700cd 6000K 40w OPEN

Optional Accsesory

622RJ
WA-17
622RJ
WA-18
Part# Specification Price
WA-17 Product Name: 600 Series 12V Relay OPEN
WA-18 Product Name: 600 Series 24V Relay OPEN
///Term description///
Lumen It is the unit of the optical energy generated from an electric bulb.
When numerical value is large, the brightness of the bulb become brighter.
Candela Measure the brightest point numerically when a head lamp is equipment.
kelvin Kelvin temperature is a numerical measurement that describes the color appearance of the light produced by the lamp and the color appearance of the lamp itself,
expressed on the Kelvin (K) scale.

Light source

Halogen Halogen light bulbs are a special type of incandescent light bulb.
They are filled with halogen gas, have a tungsten filament, and are enclosed in quartz glass.
It is intend to be out of date, but still bright and gentle light in the eyes.
H.I.D High Intensity Discharge, it the new replacement technology for halogen headlights.
Brightness is the biggest advantage of an HID conversion. Not only will you be able to see farther and better at night, but other drivers will be able to see as well.
Its estimated that an HID conversion kit will increase your brightness from a halogen set up as much as 300%.
LED LED lighting is a lamp or other light that uses light-emitting diodes (LEDs) as a source of illumination.
LEDs are more expensive than traditional bulbs. They are heat sensitive, so if they are not used with a steady and consistent current, they can stop working or fade quicker.
These lights are also usually best used in directional lighting rather than room lighting, although some changes in design may improve this.
