X2 Compact Series released

IPF released new and additional LED bulbs in the X2 series.
IPF's new X2 compact series bulbs deliver increased compatibility with a wide range of vehicles.
New compact design bulbs offer an excellent light distribution and brightness.

FEATURES

• IPF adds new and additional LED bulbs in the X2 series
• Designed to deliver minimum bulb size and utmost light output
• Downsized LED bulb body allows installation in limited clearance
• Compatible with a wide range of vehicles using headlamp protective cover
• Newly designed electric cooling fan ensures the LED bulbs run cooler
• Offering a proper beam pattern and bright illumination
• Developed the next generation LEDs in conjunction with Lextar Electronics
• Ensures improved visibility in adverse weather
• New X2 series bulbs deliver all time high lighting performance

Improved Compatibility

New X2 compact series bulbs allow installation in limited clearance and vehicles with headlamp protective cover.
Improved compatibility offers an additional option to many users.
Halogen
Halogen


* In some cases (vehicles), LED bulb's drive unit needs to be placed outside of the headlamp unit. In that case, refer to the installation manual and make a hole in the cover or headlamp unit. Also pass the LED bulb's harness through the cover or unit and waterproof it.
• This product is designed for headlamp bulb upgrade
• Misuse may result in technical malfunction

X2 Series Bulbs incorporates "Filament-figured LEDs"

Halogen
Halogen
IPF started by developing LED chips, pursuing the ideal of performance LED bulbs.
Developed an optimum LED chip for headlamp bulbs together with an LED chip manufacturer, Lextar Electronics.
IPF can deliver the most advanced LED technology capitalizing on cooperative development's strength.
These new bulbs offer excellent light distribution and brightness.

FEATURES

• IPF creates a fully new automotive LED chip for headlamp bulbs
• Offering a proper beam pattern and bright illumination
• Developed the next generation LEDs in conjunction with Lextar Electronics
• Replicates halogen filament truly
• Optimized configuration and size of light-emitting face can deliver evenly produced beam pattern and improved brightness
• Improved road visibility for distance and width without loss of LED light
• Ensures improved visibility in adverse weather
• New X2 series bulbs deliver all time high lighting performance
Halogen
Halogen

Improved Road Visibility

Replicates halogen bulb filament, providing 6500k true white daylight color. Improved road visibility ensures safety night-time driving.

Factory Halogen Bulb

X2 Series Bulb

All-new Three Technologies

IPF brought the all-new three technologies into the X2 series bulbs. Enhanced heat release design to offer the best and brightest lighting performance.
The thinner LED bulb body, the better light pattern can be made. The thicker LED bulb, the better heat release efficiency can be achieved.
IPF's performance LED bulbs can balance excellent light distribution characteristics with outstanding brightness.
4600lm in total flux (conventional ratio128% UP) is a sizable improvement in lighting performance.

Technology 1 "Dual CPS - Dual Copper Post Structure-" (Patented Design)
• IPF's performance LED bulbs feature the most efficient method for heat release
• Adopts our patent technology, "Dual CPS"
• Advanced manufacturing technology "Post Structure" provides high-spec copper substrate
• "Dual CPS" delivers thin structure of LED body and conducts heat given off from LED circuits to the heatsink

Technology 2 "Highly efficient Heat Conduction & Release Design"
• Highly heat-conductive aluminum die-cast alloy LED body
• Proven reliable heatsink using extruded aluminum alloy A6063
• Optimized heatsink shape ensures enhanced heat release efficiency
• Downsized heatsink and LED body allow for installation in limited clearance

Technology 3 "Top Performance large-sized Electric Cooling Fan"
• Optimized heatsink incorporating small-sized cooling fan
• Increased wind power and reduced wind noise by fluid analysis
• Large volume of air delivered ensures the LED bulb runs cooler

New Circuit Design

Improved noise-reducing technology, "SEPIC" system delivers long-lasting and downsized drive unit.


• "Single Ended Primary Inductor Converter" offers several technology merits
• Miniaturization of electronic circuits
• Improved electromagnetic compatibility (EMC) design
• Highly reliable long-lasting operation
• Employs Japanese-made hybrid condenser, three terminal filter and common mode noise rejection choke coil
• Well-selected high quality components provide protection against electromagnetic interference
• IPF's latest LED bulbs are compatible with hybrid vehicle, EV and PHEV both 12/24v vehicles
• Highly efficient circuit design offers significant energy reduction (power consumption: 27w)

Safety Feature/Protection against Noise

Equipped with high-spec EMC design and number of safety systems.

• Optimized board pattern
• Improved EMC design to reduce noise
• Integrated high-performance noise filter
• Highest quality noise reduction performance
• Large number of protection features according to OEM standards
• Electrostatic/pulse protection
• Over/under voltage protection
• Overcurrent protection

X2 Compact Series Bulb Diagram




Uncompromised Quality

Halogen
• Selected highly durable quality parts
• Manufactured in a strict quality control regime
• Meets OEM demand standard test
• Based on IPF's product performance evaluations
• Adds muddy salted water test
• Conducts real car endurance test
• Passed toughest evaluation tests
• Provides improved durability to withstand in conceivable harsh usage environment
• Compatible with Hybrid vehicles and ECO idling or start-stop cut off system
*In general usage environment, IPF's LED conversion kits deliver a sense of safety while using it for a long time as vehicle lighting is the most important security part and it offers a maintenance-free secure feeling.

LINE UP

341HLB
101HLB2
341HLB
151HLB2
Part Number Bulb Type Power Consumption Color Temperature Price

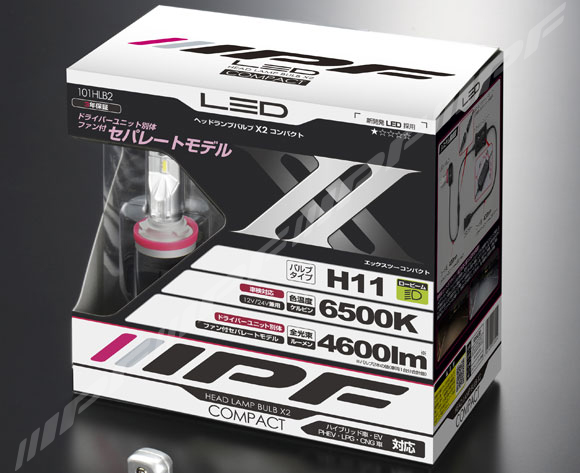

101HLB2 H11 12v/24v 27w 6500k OPEN

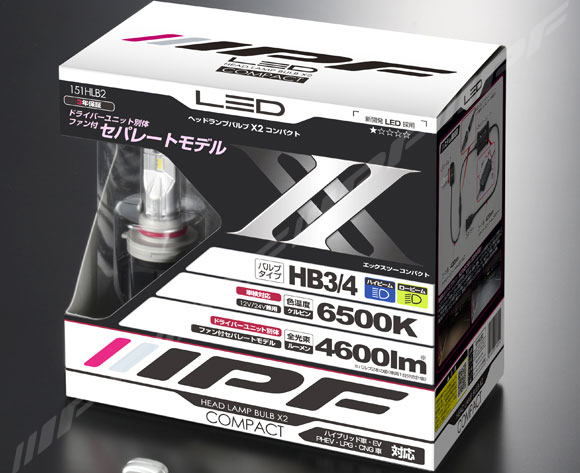

151HLB2 HB3/4 12v/24v 27w 6500k OPEN
///Term description///
Lumen It is the unit of the optical energy generated from an electric bulb.
When numerical value is large, the brightness of the bulb become brighter.
Candela Measure the brightest point numerically when a head lamp is equipment.
kelvin Kelvin temperature is a numerical measurement that describes the color appearance of the light produced by the lamp and the color appearance of the lamp itself,
expressed on the Kelvin (K) scale.

Light source

Halogen Halogen light bulbs are a special type of incandescent light bulb.
They are filled with halogen gas, have a tungsten filament, and are enclosed in quartz glass.
It is intend to be out of date, but still bright and gentle light in the eyes.
H.I.D High Intensity Discharge, it the new replacement technology for halogen headlights.
Brightness is the biggest advantage of an HID conversion. Not only will you be able to see farther and better at night, but other drivers will be able to see as well.
Its estimated that an HID conversion kit will increase your brightness from a halogen set up as much as 300%.
LED LED lighting is a lamp or other light that uses light-emitting diodes (LEDs) as a source of illumination.
LEDs are more expensive than traditional bulbs. They are heat sensitive, so if they are not used with a steady and consistent current, they can stop working or fade quicker.
These lights are also usually best used in directional lighting rather than room lighting, although some changes in design may improve this.
